SR A1A and SR 5/US 1 Roadway Improvements Project

Financial Number: 443996-1-52-01 and 440822-1-52-01

Project Length: 1.76 Miles (443996-1-52-01) and 0.40 miles (440822-1-52-01)

Project Limits: SR A1A from south of Jasmine Lane to north of SR 60/Beachland Boulevard and SR A1A and SR 5/US 1 Turn Lanes

Start Date: August 26, 2022

Completion Date: Spring 2024

Contractor: Zahlene Enterprises, Inc.

Estimated Construction Cost: $5.6 million

Scope of Work:

The SR A1A from south of Jasmine Lane to north of SR 60/Beachland Boulevard project improvements consist of repaving and restriping the existing asphalt pavement; widening the roadway to accommodate a 7-foot buffered bicycle lane; constructing a 6-foot sidewalk on the east side (northbound direction); upgrading drainage, signage and pavement markings; upgrading existing curb ramps to meet Americans with Disabilities Act (ADA) standards; adding two signalized pedestrian mid-block crossings at Iris Lane and Dahlia Lane; and, upgrading pedestrian signal and lighting at the intersection of SR A1A and SR 60/Beachland Boulevard. SR A1A and SR 5/US 1 turn lanes project improvements consist of constructing a southbound right turn lane at the intersection of SR 5/US 1 and 8th Street; extending the southbound right turn lane at the intersections of SR A1A and the 17th Street Causeway and SR A1A and SR 60/Beachland Boulevard; and upgrading existing drainage.

Point of Contact:

Para información y preguntas en Español, por favor llame al (954) 777-4302.

Documents:

PDF IconVPM SR A1A

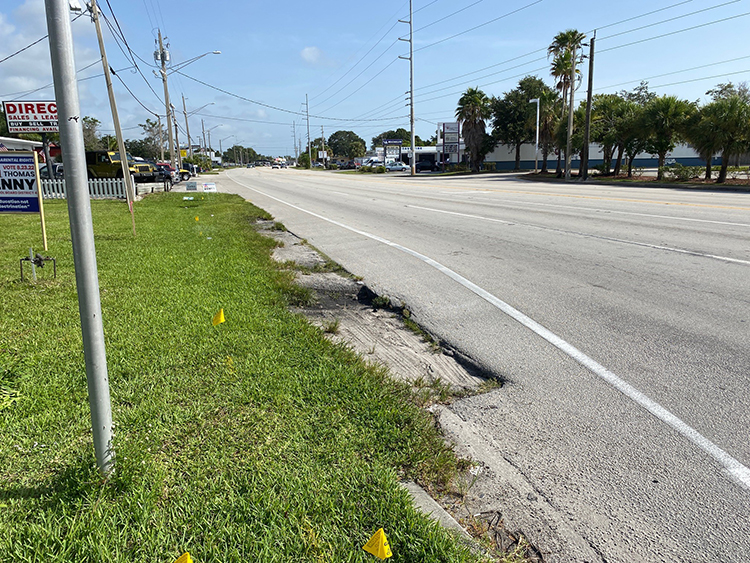

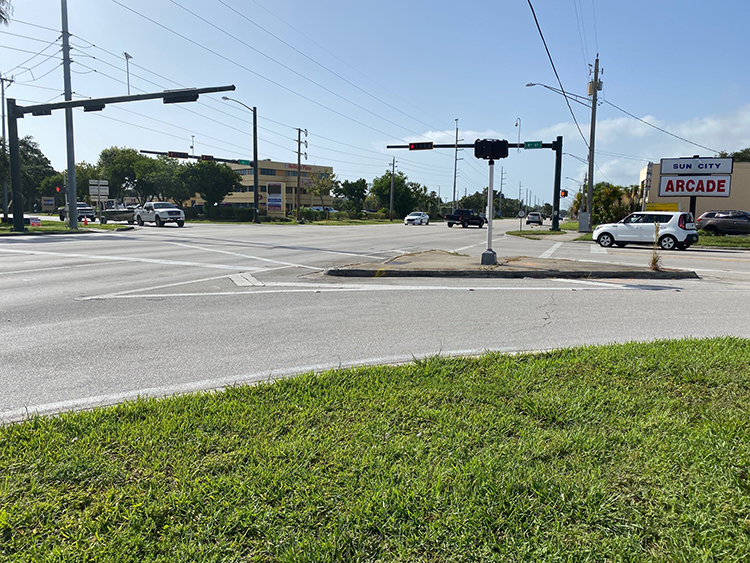

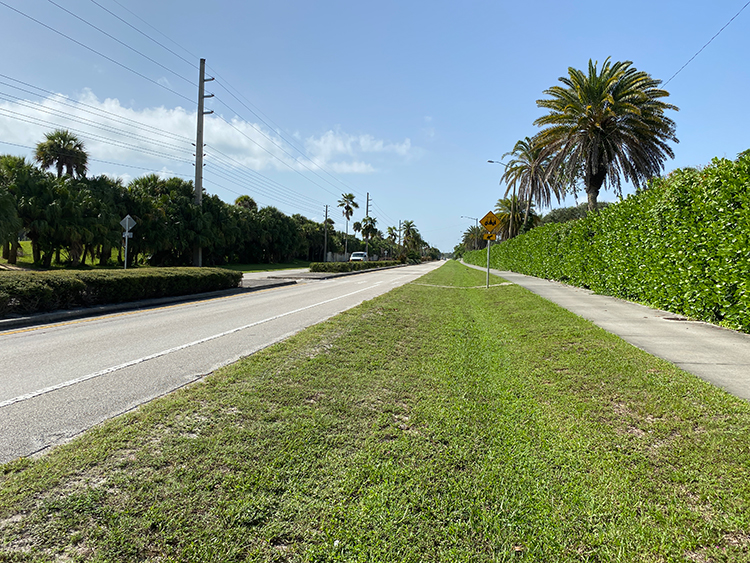

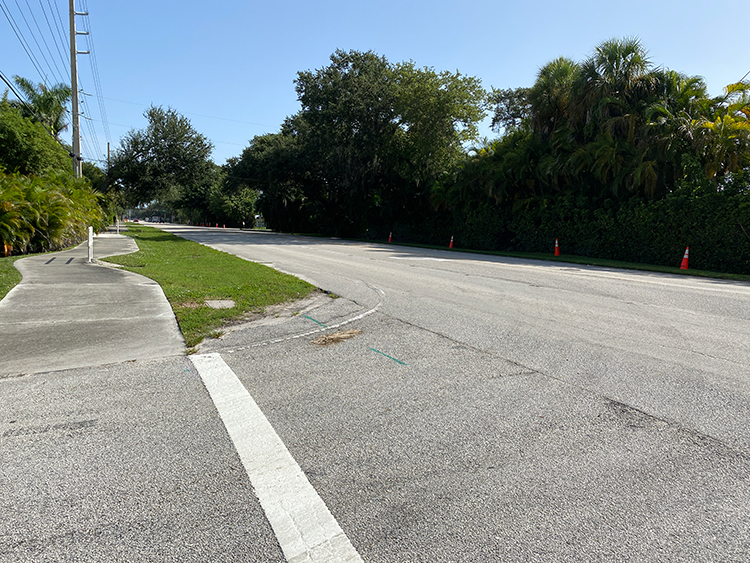

Pre-Construction

Click to view enlarged version/details

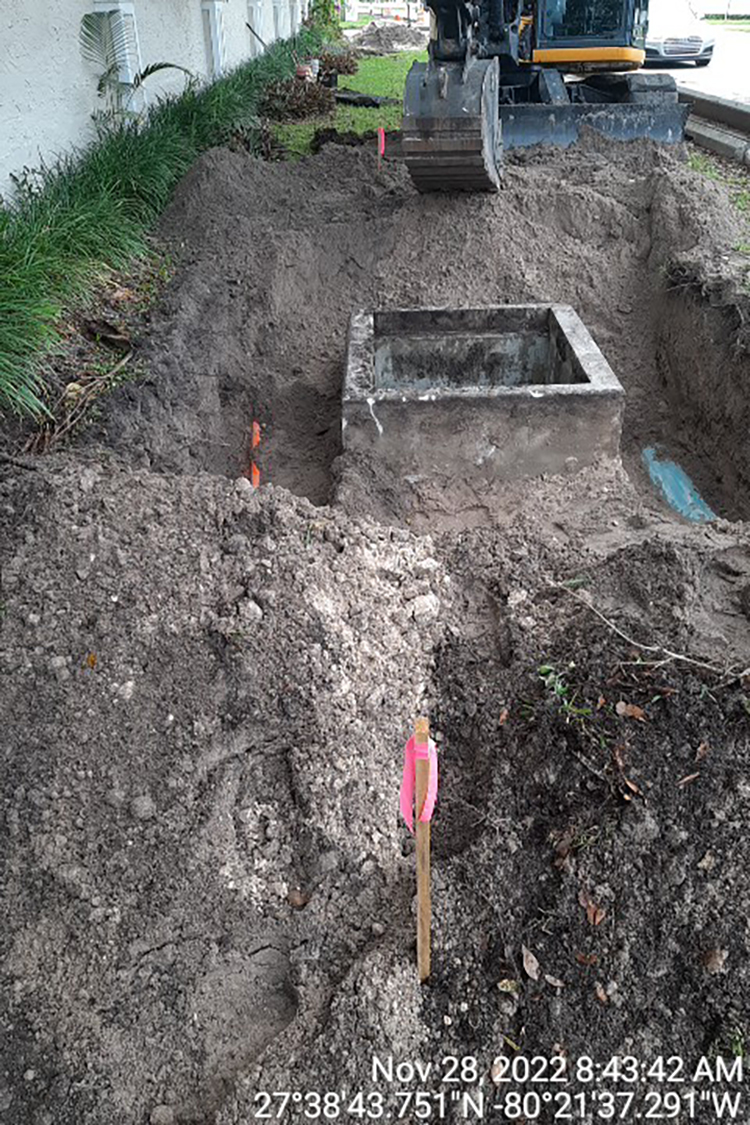

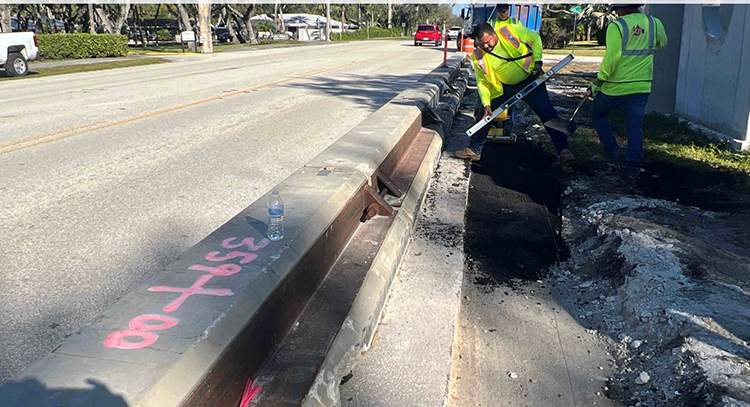

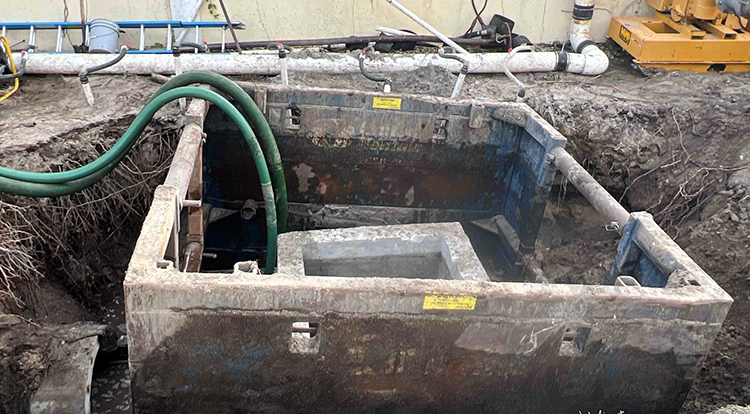

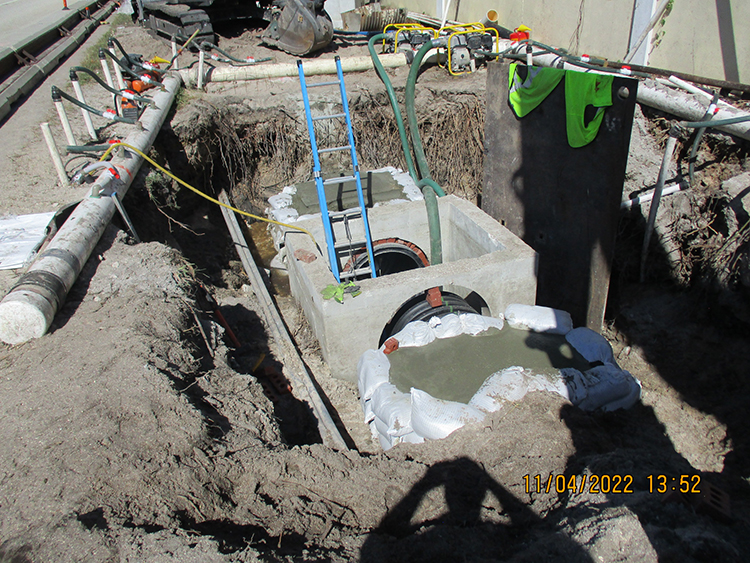

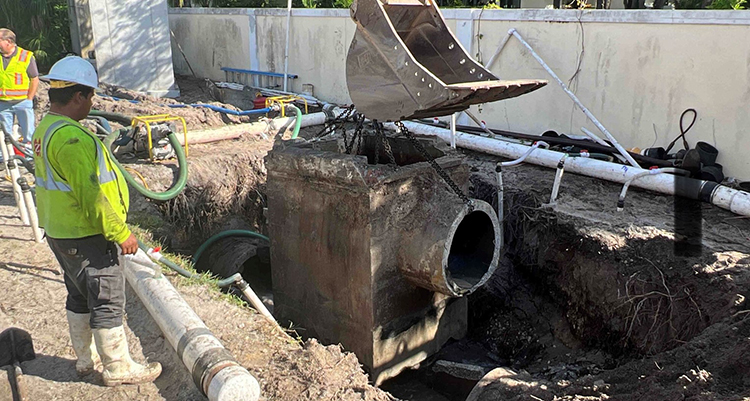

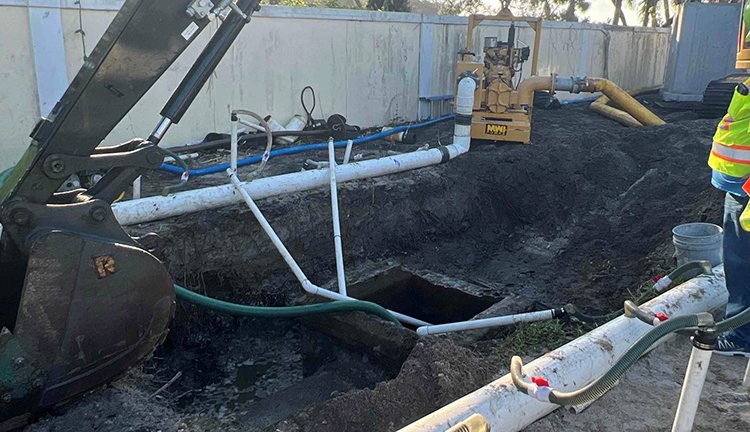

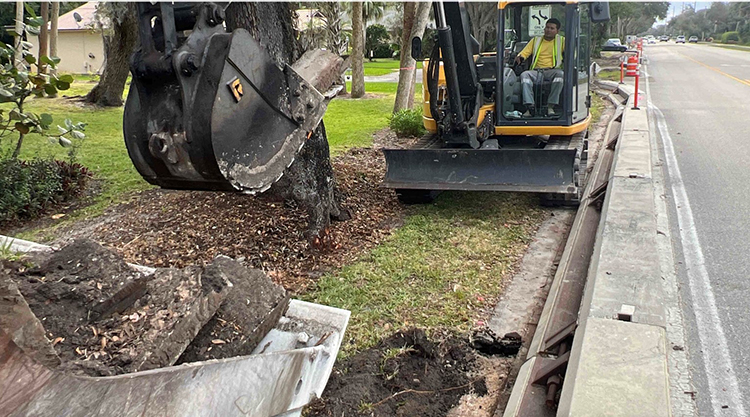

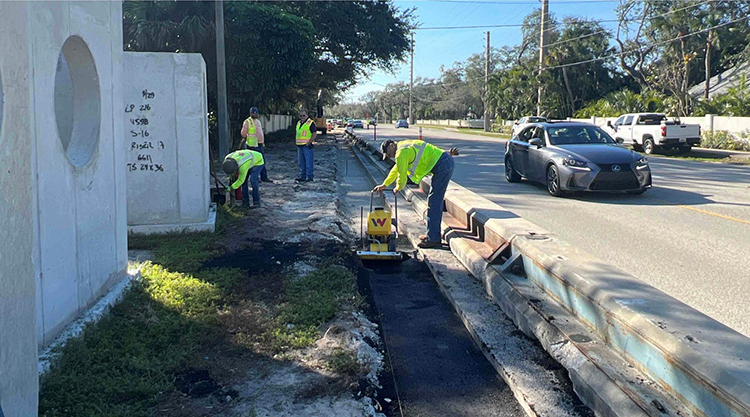

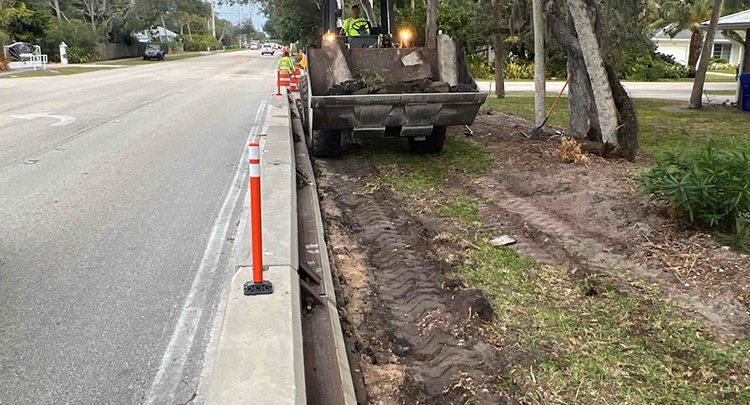

During Construction

Click to view enlarged version/details
Overnight paving along SR A1A, Feb. 2024Installing roadway signs on right turn, Feb. 2024Overnight milling SR A1A, Feb. 2024
Paving FC 9.5 along SR A1A side streets and right turn lanes, Mar. 2024Paving FC 95 along SR A1A right roadway for Side Streets and driveways, Mar. 2024
