State Road 710/Beeline Hwy. Project

Financial Number: 419251-1-52-01

Project Length: 3.142 miles

Project Limits: From Northlake Blvd. to Blue Heron Blvd.

Virtual Public Information Meeting: Wednesday April 27th, 2022

Letting: April 26, 2023

Start Date: Spring 2024

Completion Date: Late 2029

Estimated Construction Cost: $148,287,603.98

Scope of Work:

  • A grade separation alternative at SR 710 and Northlake Blvd. intersection was studied and presented during the public hearing from the 2013 PD&E study. Public opposition, primarily from the City of West Palm Beach and the PGA National residential community led FDOT to reject the grade separated alternative.
  • Widen SR 710 from Northlake Boulevard to Blue Heron Blvd from 4 lanes to 6 lanes.
  • Street lighting and new mast arm signals at intersec¬tions along SR 710 from Northlake Boulevard to Blue Heron Blvd.
  • Railroad crossing upgrade at SR-710/Northlake Boule¬vard intersection.
  • An Innovative at grade intersection configuration, Par¬tial Continuous Flow Intersection (CFI) is now pro¬posed at the intersection of SR 710 and Northlake Blvd. to provide more green time for left turn movement, and to avoid right of way acquisitions.

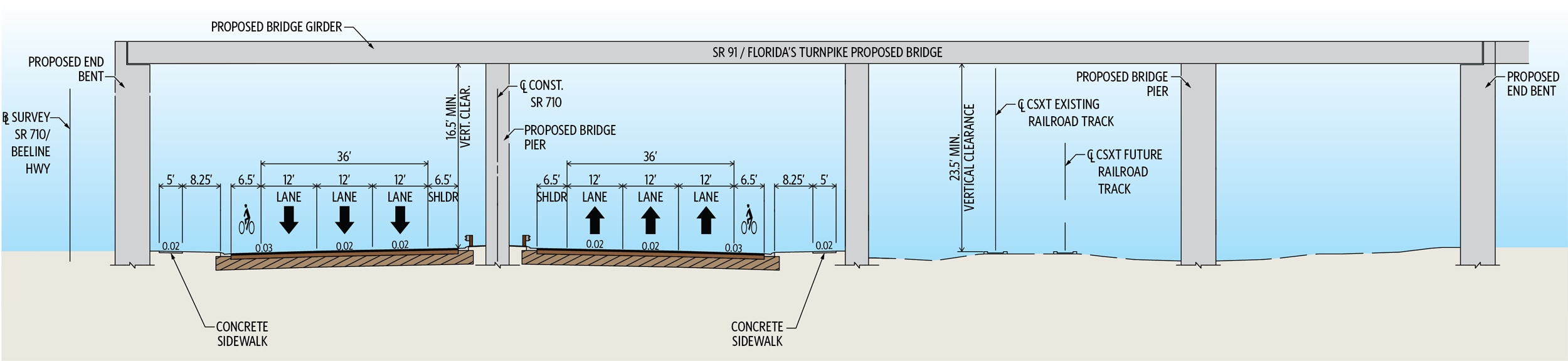

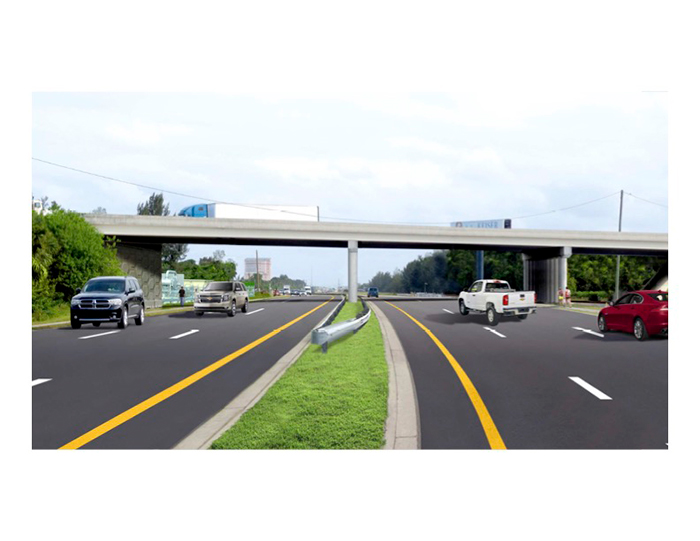

  • Replacement of the Florida's Turnpike bridge over SR 710 to provide 5 lanes in each direction, with two in¬side lanes being managed lanes, two lanes being gen¬eral purpose lanes, and outside lane being an auxiliary lane.
  • Barrier wall 8 ft high along Steeplechase Community.

Construction Impacts:

  • Work will be completed in phases to minimize construction impacts.
  • Access to properties adjacent to the corridor will be maintained throughout construction.

Documents

PDF IconSR700_BeelineHwy - FAQ Sheet - Fall2023

PDF IconState Road 710 Beeline Presentation

PDF Icon09 - SR 710 Project Fact Sheet

Contact Information:

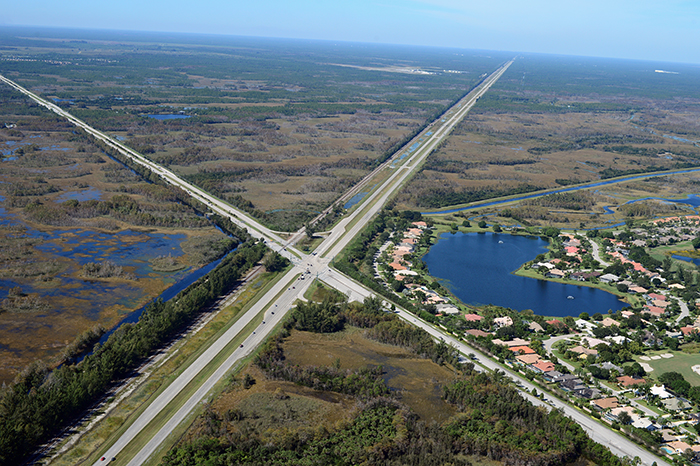

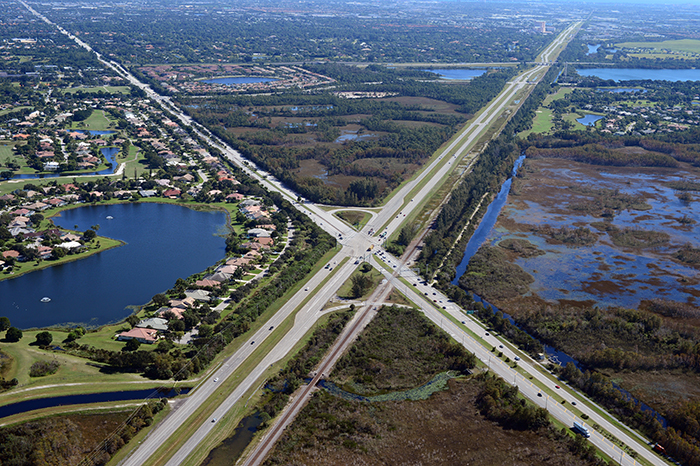

Project Photos

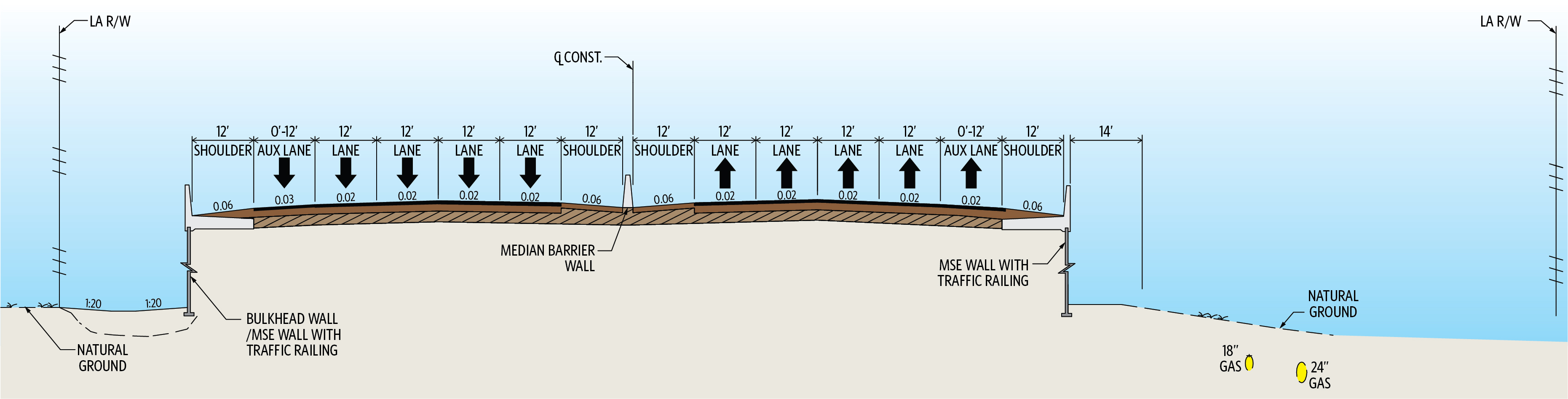

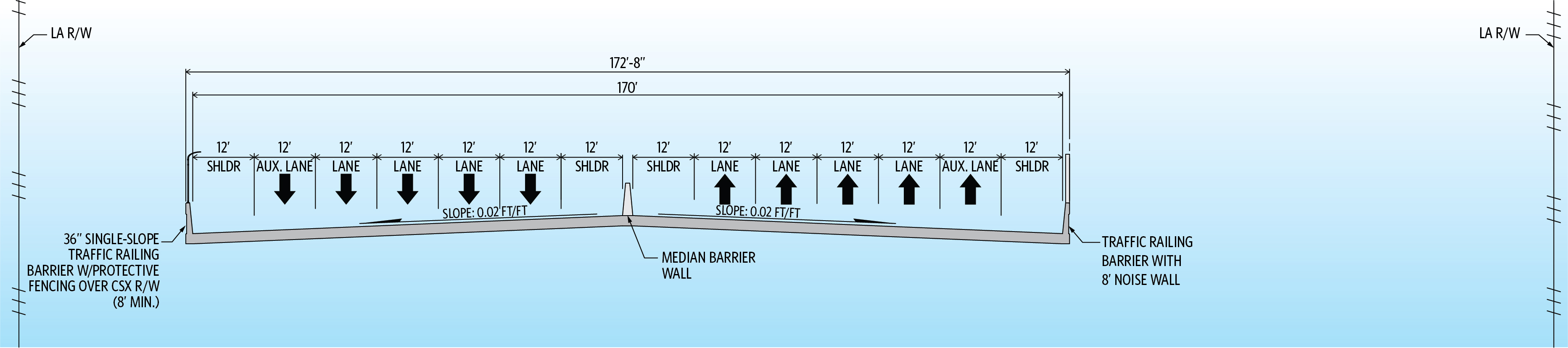

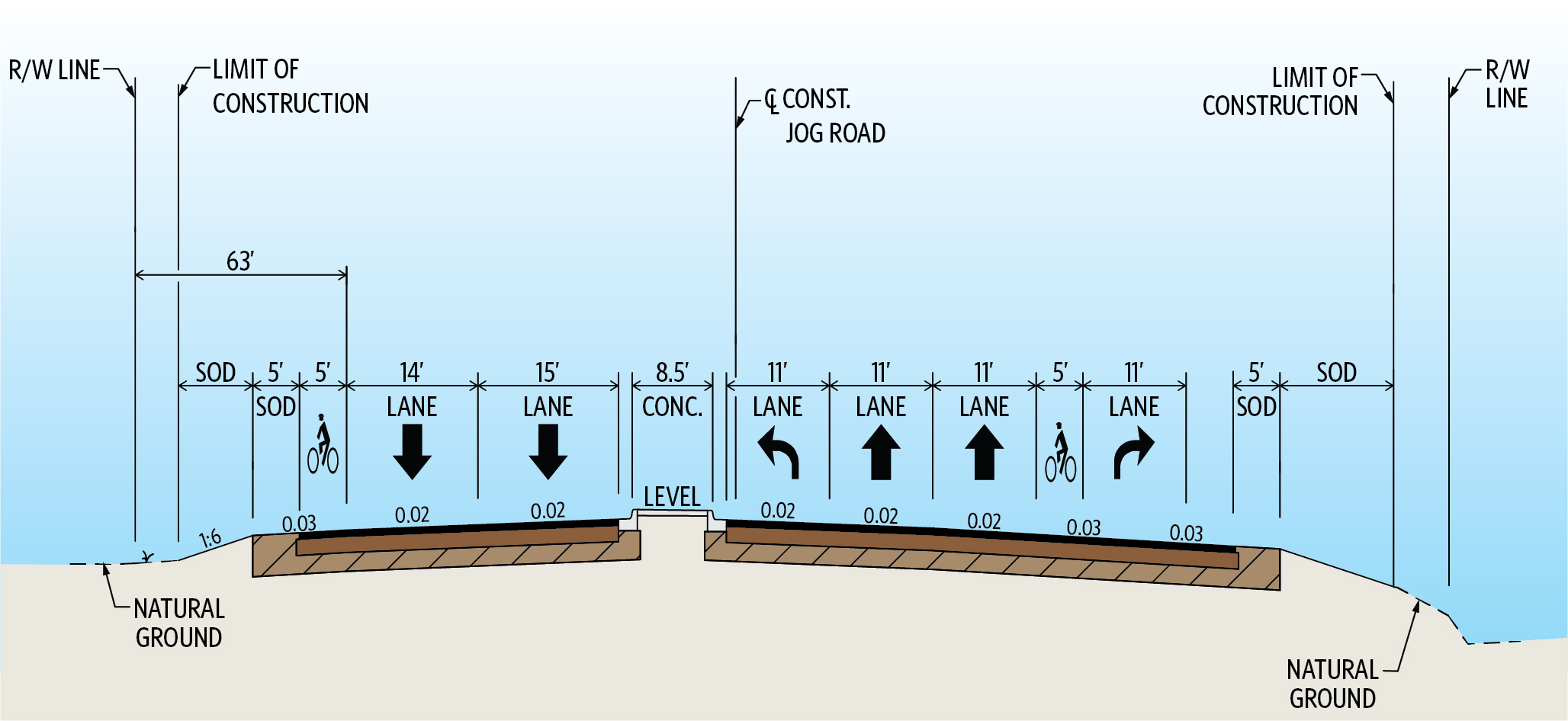

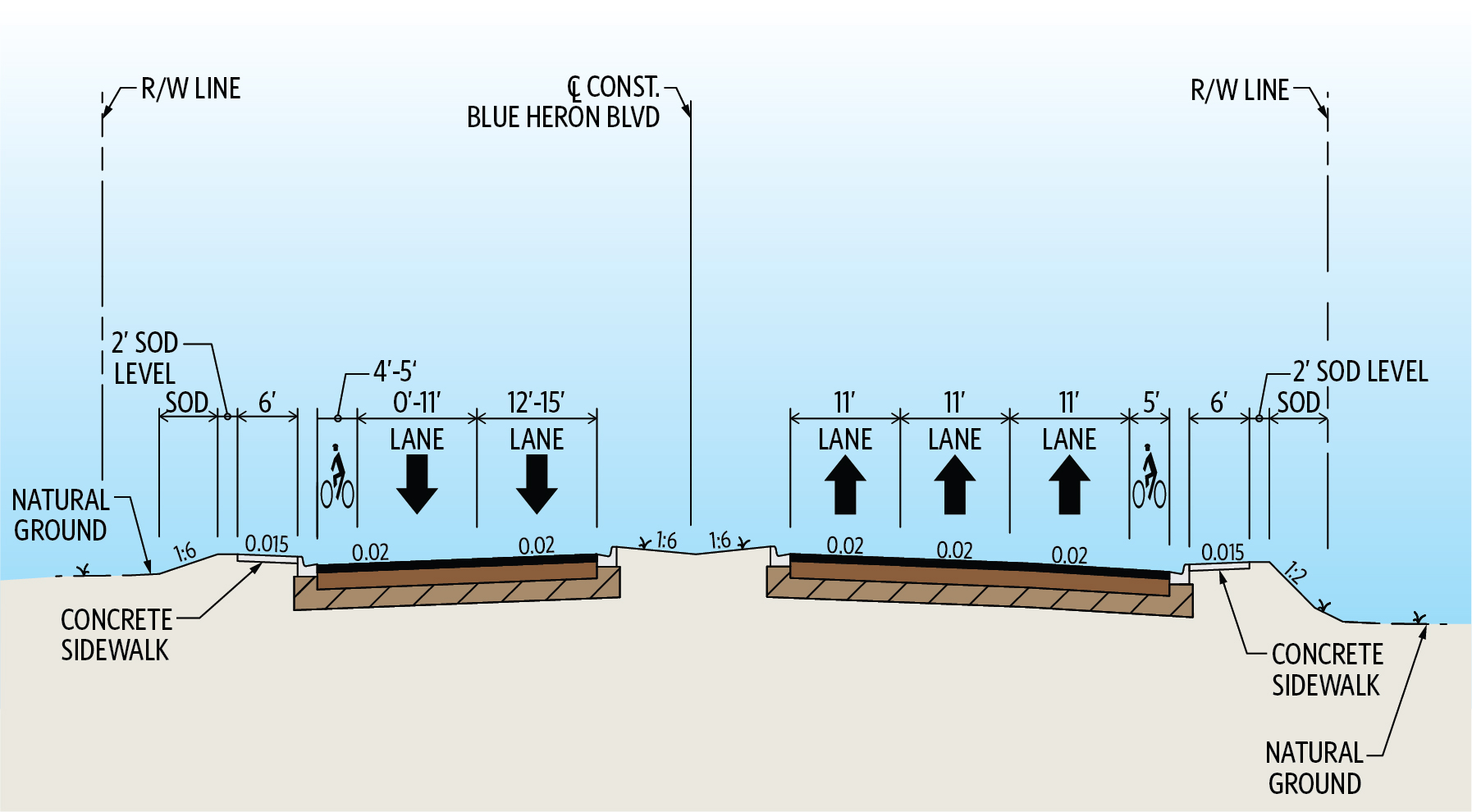

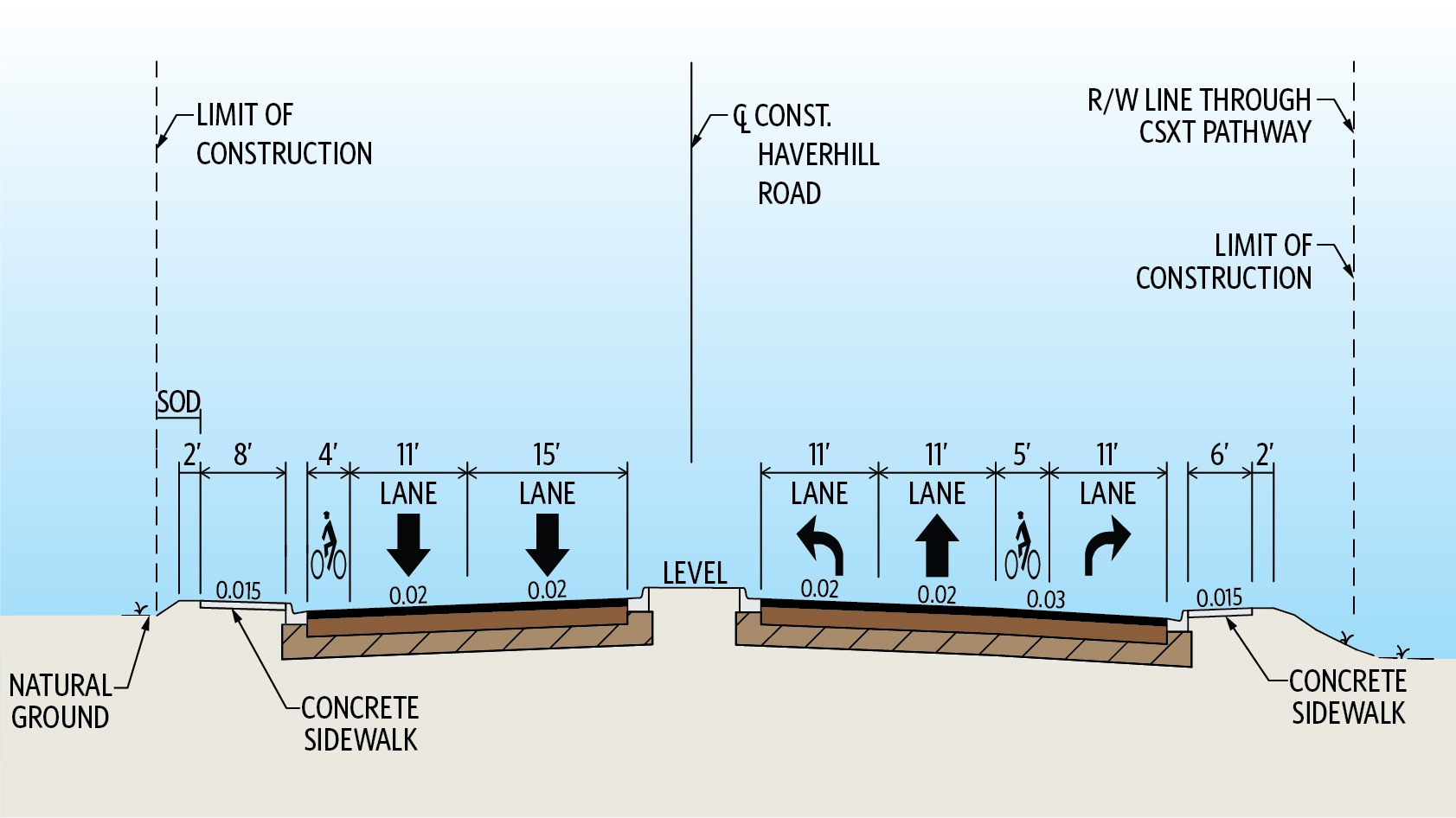

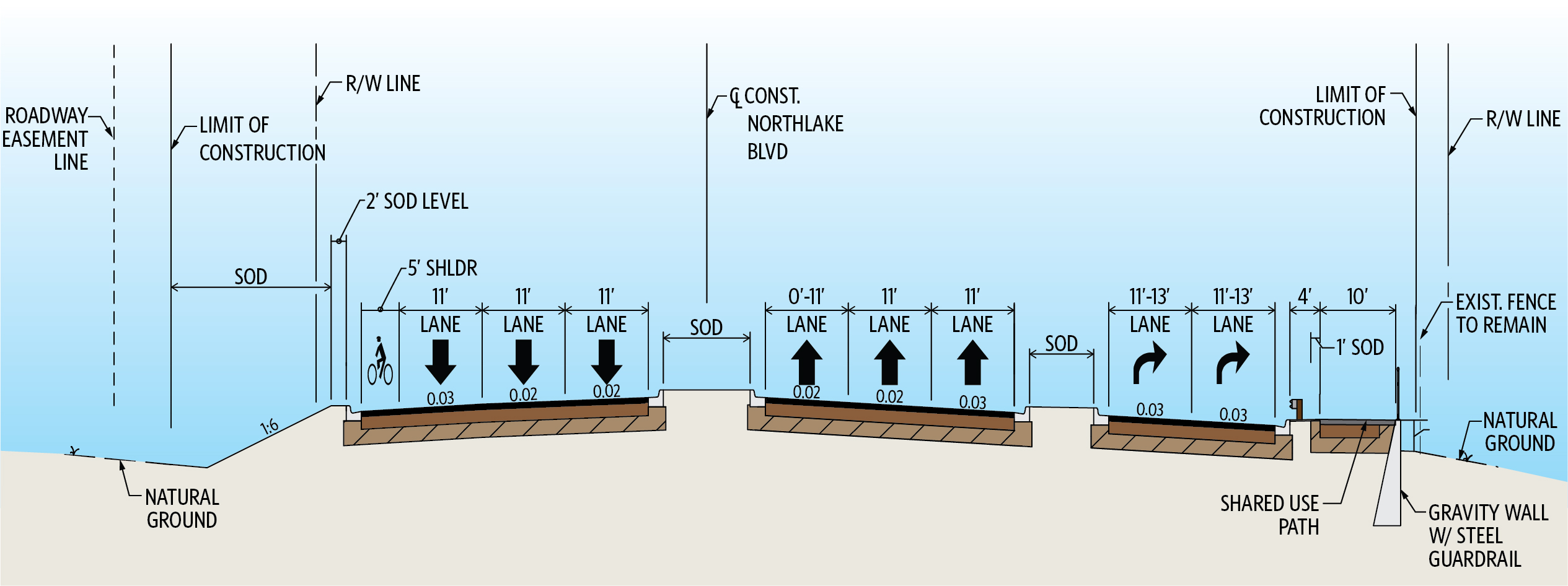

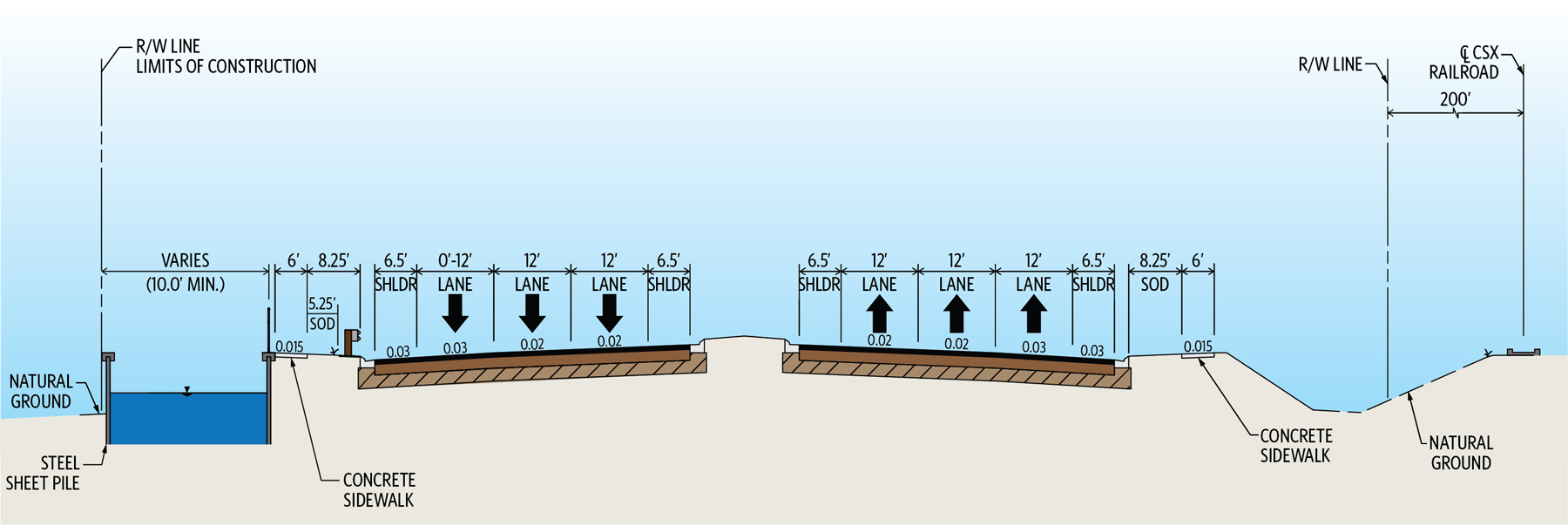

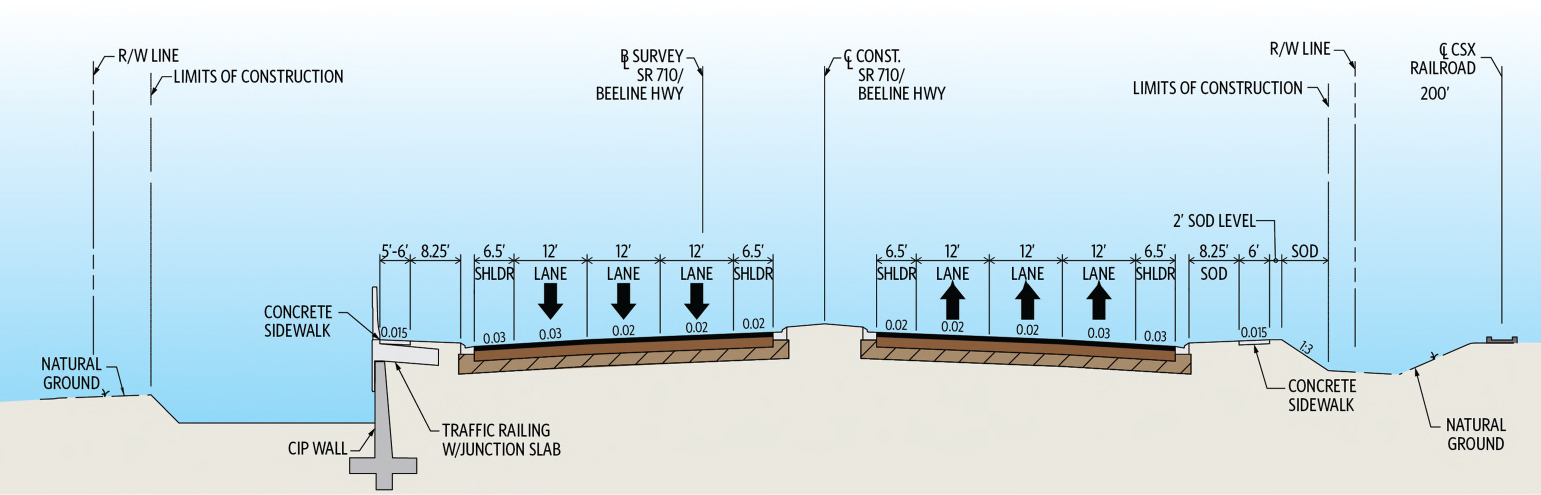

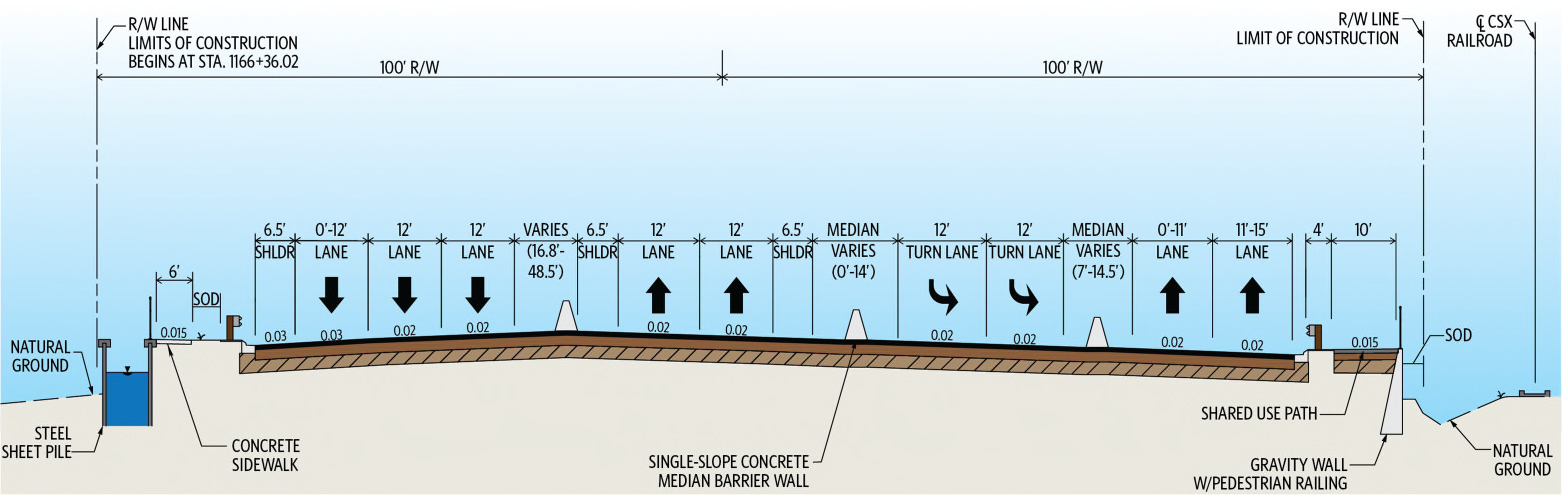

Project Typical Sections

Click to view enlarged version/details

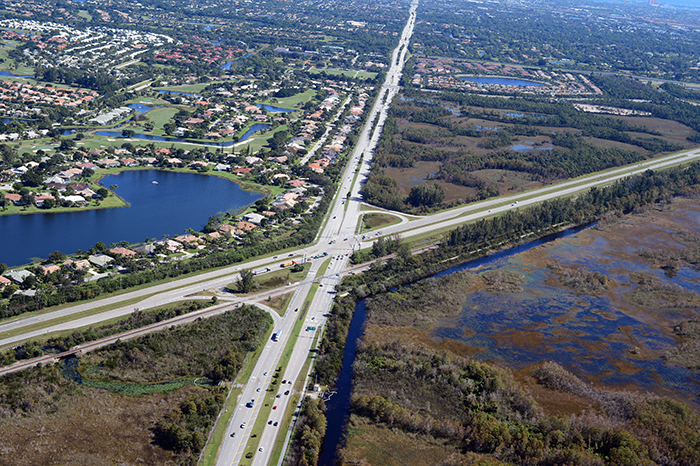

Pre-Construction

Click to view enlarged version/details
